__Purpose

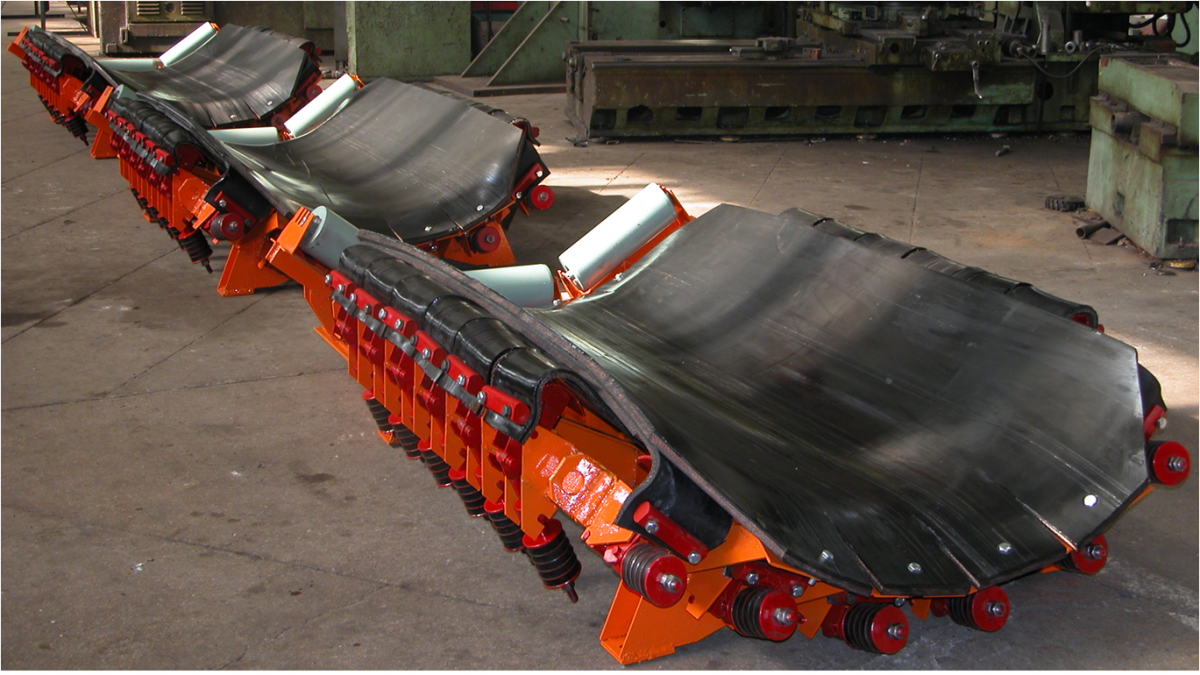

__The cushioning device for the conveyor belt "Trampoline" is designed to increase the reliability of the conveyor and the durability of the conveyor belt, as well as to increase the service life of the capital structures supporting the conveyor.

__Scope of application

__"Trampoline" is installed in the place of loading of the conveyor in place of existing roller bearings. The device is made in the form of a separate unit with a continuous, highly compliant sliding support, which extinguishes the force of impact along the conveyor belt of pieces up to 1400 mm in size.

__Twenty-year operational experience of "Trampoline" showed their high reliability and efficiency. The lifetime of the conveyor belt increased by 2-3 times; decreased consumption of rollers of the freight branch. "Trampolines" do not require maintenance during the entire service life. The damper of the conveyor belt "Trampoline" is made for conveyors with a width of a roll from 800 to 2500 mm.

    Warranty period - 10 years.

Device and Operation
